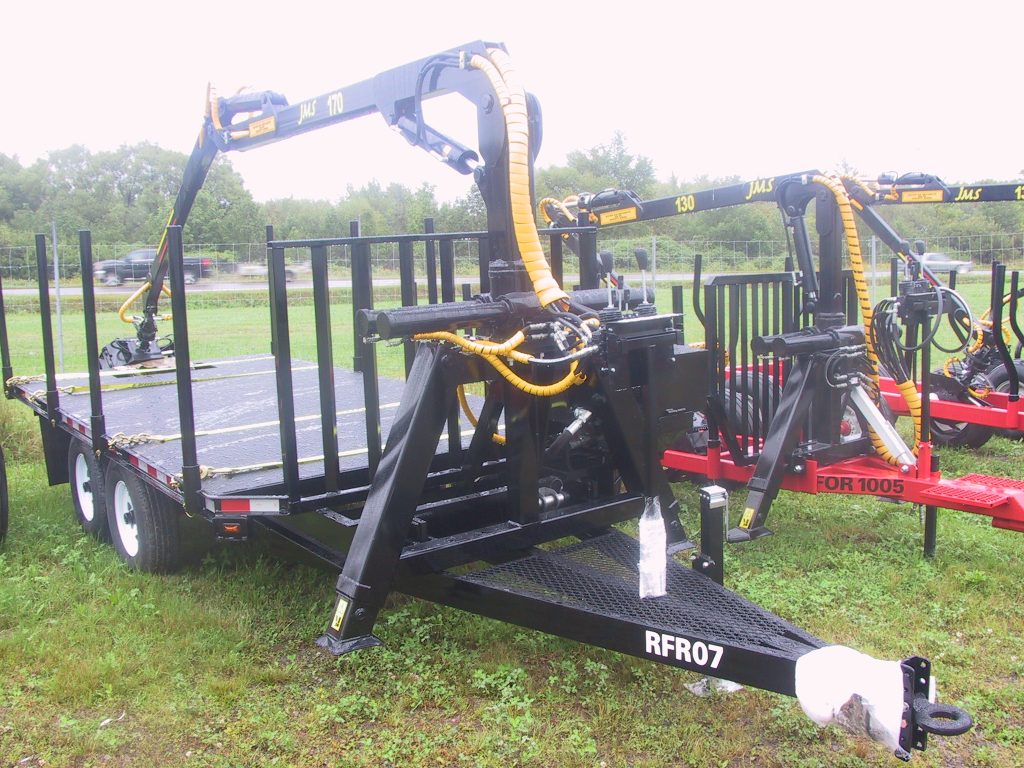

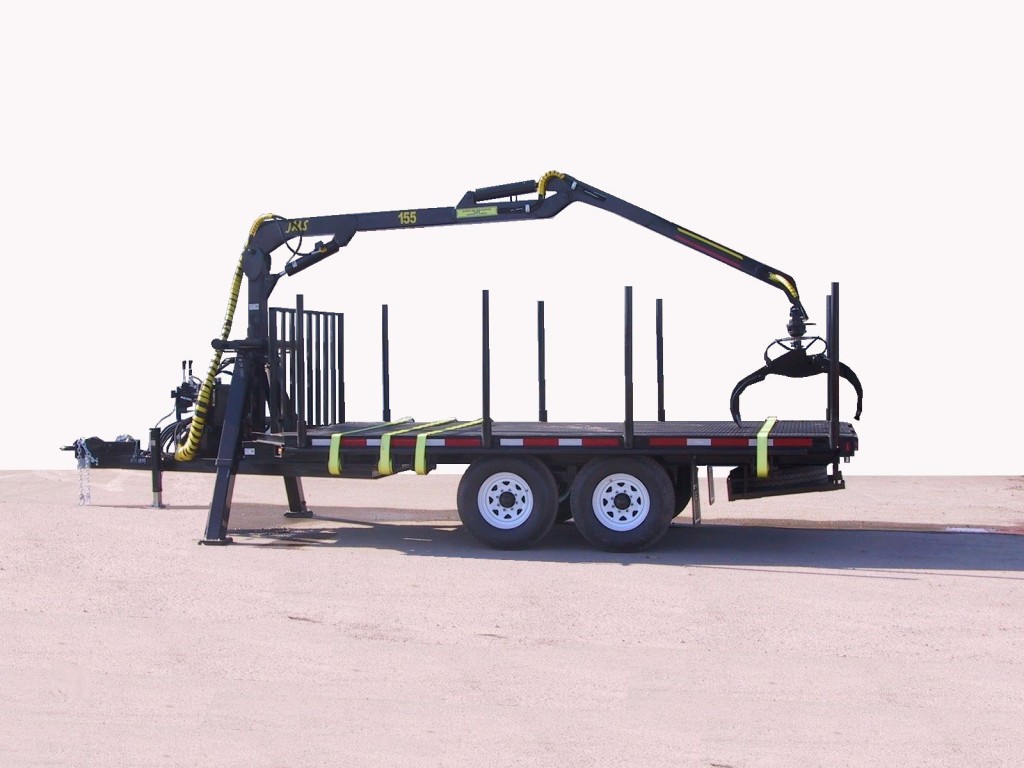

RFR025 - RFR05 - RFR07 - RFR10
MODEL RFR025 RFR05 RFR07 RFR07-GN RFR10 RFR10-GN
Approximative weight 1 628 lbs / 738 kg 2 530 lbs / 1 147 kg 2 860 lbs / 1 297 kg 4 110 lbs / 1 297 kg 3 500 lbs / 1 587 kg 4 635 lbs / 2 106 kg
PNBV 7700 lbs
3 492 kg		 13 385 lbs
6 071 kg		 16 500 lbs
7 484 kg		 16 500 lbs
7 484 kg		 20 000 lbs
9 072 kg		 23 520 lbs
10 668 kg
Loading surface 64″ x10’8″
163cm x 325cm		 84″ x 15’4″
213cm x 467 cm		 84″ x 15’4″
213cm x 467 cm		 84″ x 15’4″
213cm x 467 cm		 84″ x 15’4″
213cm x 467 cm		 84″ x 15’4″
213cm x 467 cm
Overall length 17.0′ / 5,18m 24.0′ / 7,3 m 24.0′ / 7,3 m 26.0′ / 7,9 m 24.0′ / 7,3 m 22.0′ / 6,7 m
Overall width 72″ / 182cm 89″ / 226cm 89″ / 226cm 89″ / 226cm 89″ / 226cm 89″ / 226cm
Suspension Lames  /springs Lames  /springs Lames  /springs Lames /springs Lames  /springs Lames  /springs
Electric brake 10″ / 25,4cm 12″ / 30,5cm 12″ / 30,5cm 12″ / 30,5cm 12″ / 30,5cm 12″ / 30,5cm
Tires H78/15ST               8 plis 235/85R16            10 plis 235/85R16             14 plis 235/85R16 14 plis 235/85R16             14 plis 235/85R16              14 plis
Post 8 x 48” / 8 x 122cm 8 x 48” / 8 x 122cm 8 x 48” / 8 x 122cm 8 x 48” / 8 x 122cm 8 x 48” / 8 x 122cm 8 x 48” / 8 x 122cm
Securing strap 2 4 4 4 4 4
Hitch height 18″ / 45,7 cm 21″ / 53,3 21″ / 53,3 21″ / 53,3 21″ / 53,3 21″ / 53,3
Track, center/center 50″ / 127cm 71″ / 180,3cm 71″ / 180,3cm 71″ / 180,3cm 71″ / 180,3cm 71″ / 180,3cm
Hub holes 5 8 8 8 8 8
Hitch 2-5/16″ / 5,7cm 2-5/16″ / 5,7cm 2-5/16″ / 5,7cm 2-5/16″ / 5,7cm 2-5/16″ / 5,7cm 2-5/16″ / 5,7cm
OPTION
Spare tire H78/15ST                 8 Plis 235/85R16            10 Plis 235/85R16             14 Plis 235/85R16 14 Plis 235/85R16             14 Plis 235/85R16             14 Plis
Gooseneck OPT OPT OPT OPT OPT STD
Ring OPT OPT OPT OPT OPT NA

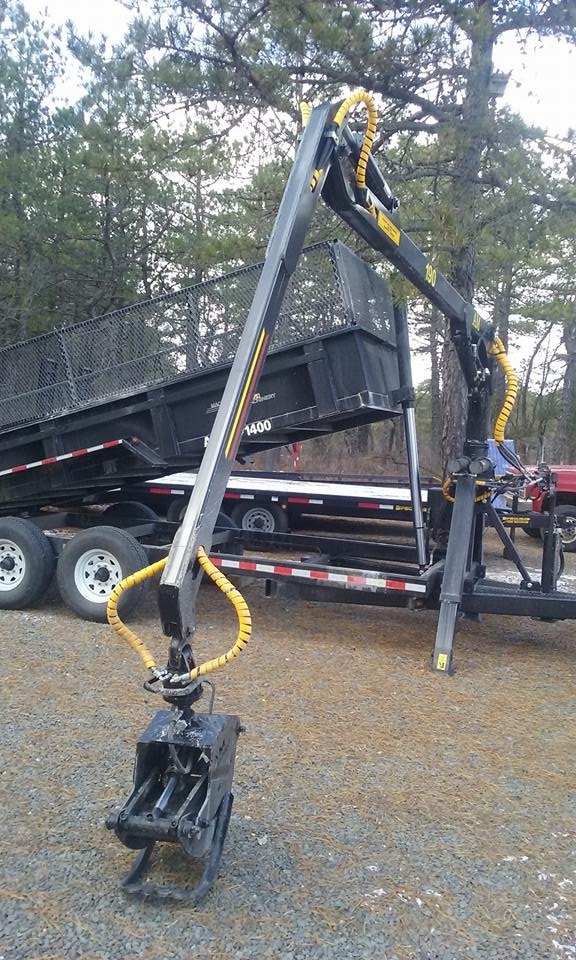

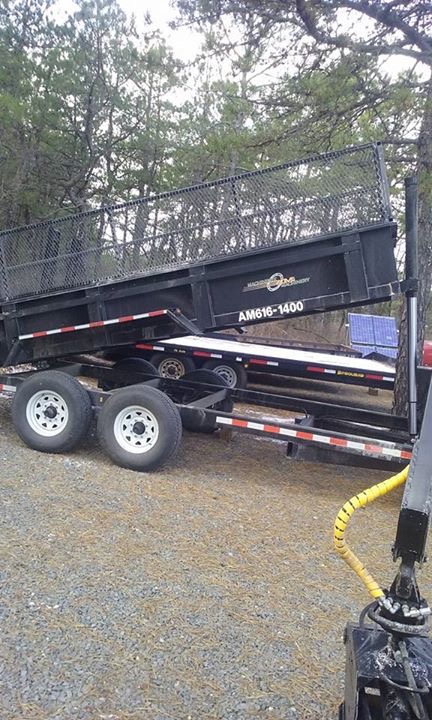

  • JMS Log Loader with a AM614-1400 Dump Trailer
